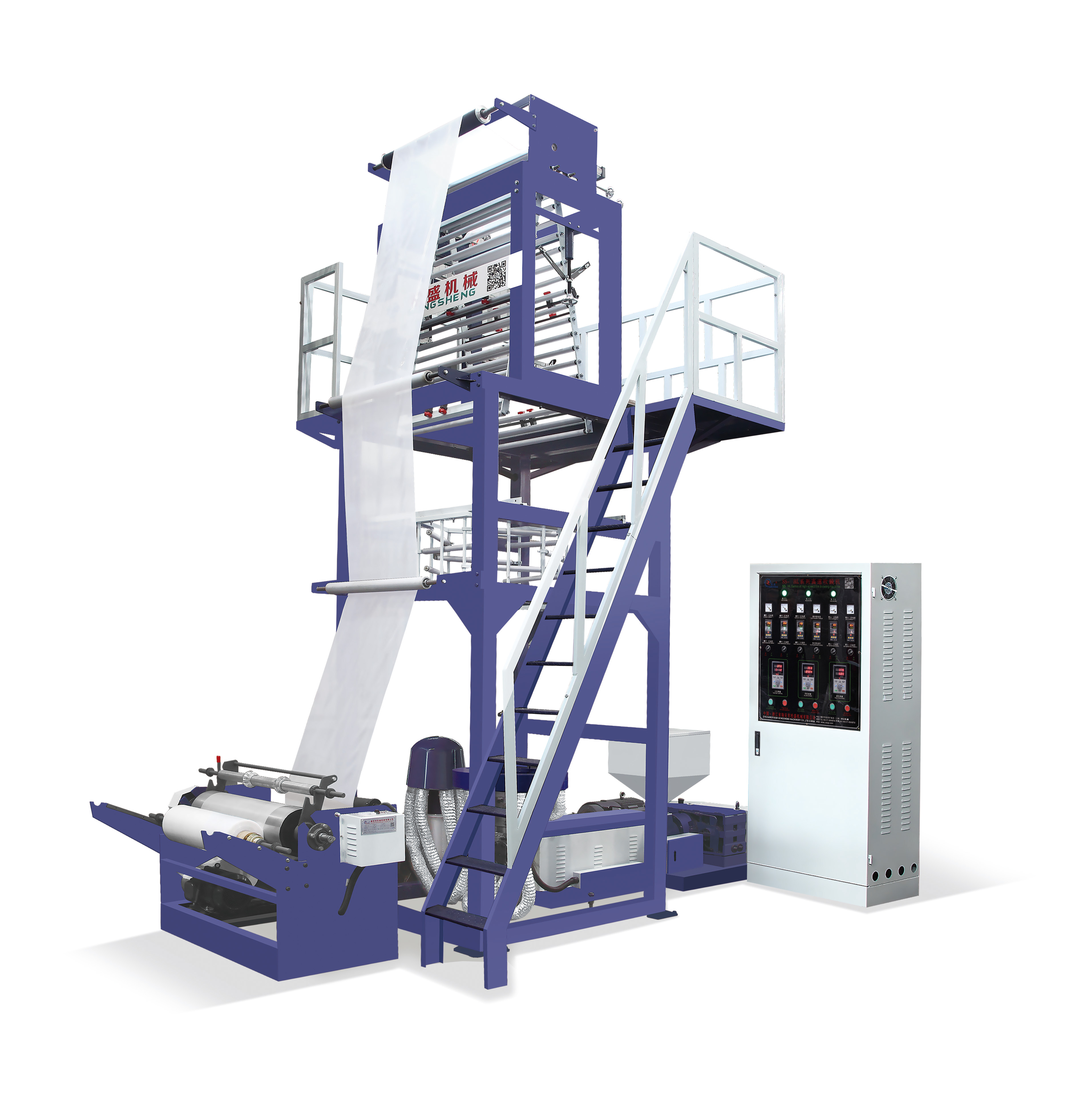

SS-HL Series High Speed High Pressure Film Blowing Machine
SS-HL Series High Speed High Pressure Film Blowing Machine
Use
This blow film machine is suitable for making low-density polyethylene (LDPE), and linear low-density polyethylene (LLDPE) films, which is widely used in the packaging of household and industrial products such as food, clothing, textiles, and daily necessities. Also machine can make pearlescent film and biodegradable film through different raw material formulas. This machine is currently the preferred machinery with high cost-effectiveness in the market.
|
|
SS-LDHL600MM |
SS-LDHL800MM |
SS-LDHL1000MM |
SS-LDHL1200MM |
|
薄膜寬度Film Width |
100-600mm |
200-800mm |
300-1000mm |
400-1200mm |
|
單層薄膜厚度 One Layer Film Thickness |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
0.01-0.1mm |
|
最大產量Max Output |
45-50KG/H |
50-60KG/H |
80-90KG/H |
90-100KG/H |
|
螺桿直徑Screw Dia |
Φ45mm(metallic)合金 |
Φ50mm(metallic)合金 |
Φ60mm(metallic)合金 |
Φ65mm(metallic)合金 |
|
螺桿長徑比Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
螺桿轉速Screw Speed |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
10-150rpm(high speed) |
|
冷卻風機Cooling Fan |
250W ×2 |
250W × 2 |
370W ×3 |
370W ×3 |
|
主電機Main motor |
15KW with inverter |
18.5KW with inverter |
30KW with inverter |
37KW with inverter |
|
齒輪箱Gear Box |
146 |
173 |
200 |
200 |
|
鼓風機Blower |
2.2KW |
3.0KW |
4.0KW |
5.5KW |
|
模頭Die Head |
LDΦ120mm(Fix die) |
LDΦ150mm(Fix die) |
LDΦ220mm(Fix die) |
LDΦ250mm (Fix die) |
|
風環 Air Ring |
Φ700(double air lip)雙風口 |
Φ800(double air lip)雙風口 |
Φ1000(double air lip)雙風口 |
Φ1000(double air lip)雙風口 |
|
電壓Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
總功率Total Power |
35KW |
40KW |
55KW |
65KW |
|
機器重量Machine weight |
2.5T |
3.0T |
3.5T |
6.0T |
|
機器尺寸Machine Dimension |
L4.8*W2.2*H4.5m |
L5.0*W2.4*H5.2m |
L5.5*W2.6*H5.5m |
L5.5*W2.8*H6.2mm |
|
|
SS-LDHL1500MM |
|
薄膜寬度Film Width |
500-1500mm |
|
單層薄膜厚度 One Layer Film Thickness |
0.01-0.1mm |
|
最大產量Max Output |
100-120KG/H |
|
螺桿直徑Screw Dia |
Φ75mm(metallic)合金 |
|
螺桿長徑比Screw Length Ratio |
30:1 |
|
螺桿轉速Screw Speed |
10-140rpm(high speed) |
|
冷卻風機Cooling Fan |
370W ×3 |
|
主電機Main motor |
55KW with inverter |
|
齒輪箱Gear Box |
225 |
|
鼓風機Blower |
7.5KW |
|
模頭Die Head |
LDΦ350mm |
|
風環 Air Ring |
Φ1200(double air lip)雙風口 |
|
電壓Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
|
總功率Total Power |
95KW |
|
機器重量Machine weight |
8.0T |
|
機器尺寸Machine Dimension |
L6.8*W2.6*H6.50 |
